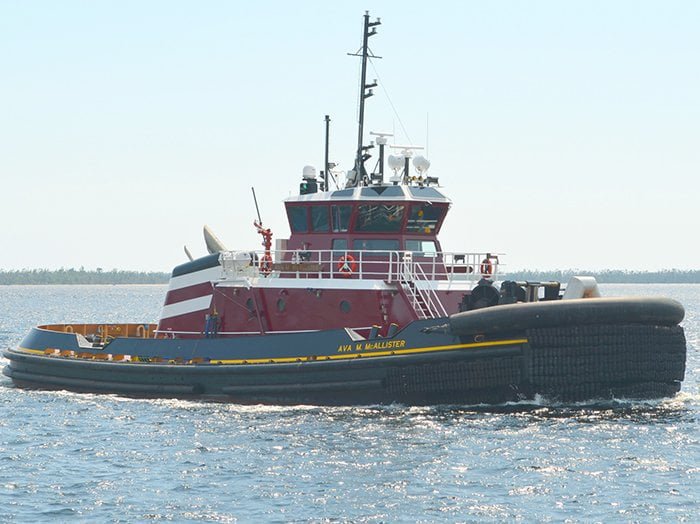

Ava McAllister
Eastern Shipbuilding Group,Inc just recently supplied the escort/rescue Z-drive pull Ava M. McAllister to McAllister Towing,Inc
The pull is USCG Sub- M licensed and also is the 3rd in a collection of 4 vessels developed to the very same Jensen Maritime style. The lead vesselCapt Brian McAllister, was supplied by Horizon Shipbuilding in 2017. The 2nd, Rosemary McAllister, was supplied by Eastern in 2015. and also the 4th,Capt Jim McAllister, will certainly be supplied by Eastern later on this year.
The Ava M. McAllister has the complying with qualities:
- Dimensions (Overall): 100′ x 40′ x 16′ -4″
- Total Horsepower: 6,772 HP
- Main Engines: 2 x Caterpillar 3516E 3,386 HP @ 1800 RPM, Tier 4 EPA -Certified Marine Diesel Engines
- Main Propulsion: 2 x Schottel SRP-510 Z-Drives Fixed Pitch
- Reduction Gears: 2 x Lufkin MV1600S, with 2:1 Reduction
- Main Generators: 3 x Caterpillar C7.1 Turbocharged, each ranked at 118kW @ 1,800 RPM
- Firefighting: 1 x Caterpillar C9.3 Tier 3 EPA Certified Marine Auxiliary Diesel Engine ranked at 375 HP @ 1,800 RPM
- Fire Pump & & Monitors: 1 x FFSModel SEP150 x 200HD, 3,000 GPM
- 2 x FFS Model 300MMonitors, 1,500 GPM each
- 1 x IM/API -100 AFFF Foam Proportioner @ 3 & & 6%
- Hawser Winch: 1 x Markey Machinery Series DEPCF-52-75 Single Drum Hawser Winch, Bow placed
- Towing Winch: 1 x Markey Machinery Series DEPC-42-40 Single Drum Tow Winch, Stern placed
