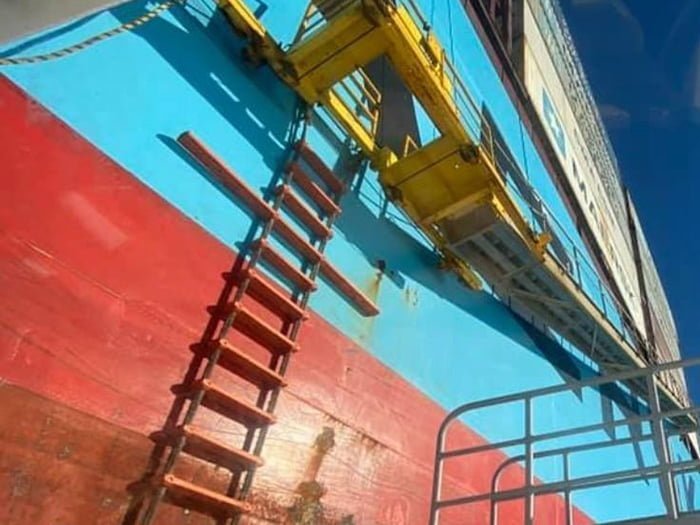

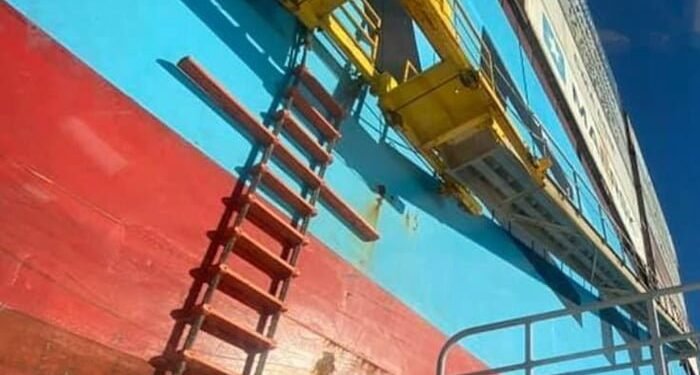

Example of trapdoor setup with ladder dangling from base of system (American Pilots’ Association)
The American Pilots’ Association has actually composed state pilotage authorities calling them to do something about it on making use of harmful “trapdoor” pilot-access plans.
The letter adheres to the December 30, 2019 case in which Captain Dennis Sherwood, a New York qualified pilot, was eliminated from a loss while getting started an incoming containership. The pilots’ organization states that departure in this circumstances was by means of a mix setup of a holiday accommodation ladder and also a pilot ladder.
“Such a combination is required whenever the distance from the surface of the water to the point of access to the ship is more than nine meters,” states the organization. “This specific mix setup, nevertheless, entailed a trapdoor in the system of the holiday accommodation ladder with the pilot ladder hanging from a cross light beam near all-time low of the system, and also with the leading action of the ladder considerably listed below the degree of the system.
“This calls for a pilot to draw himself or herself up via the trapdoor while turning to obtain a safe and secure ground on the system. Captain Sherwood dropped while trying to make that hard maneuver to move from the pilot ladder to the system over.
“This trapdoor arrangement is currently found on a number of ships with accommodation ladder-pilot ladder combinations, despite the facts that it has long been considered by pilots to be unsafe and that the IMO has recognized that it is unsafe by taking steps to eliminate it. Since at least 1979, IMO guidelines have recommended that pilot ladders used with a trapdoor extend to the height of the platform’s handrail. The purpose of that recommended practice is to bring the ladder steps up to a level from which the pilot can step across to the platform rather than pull himself or herself up to it.”
The organization keeps in mind that 9 years earlier, the IMO modified the SOLAS pilot transfer law (SOLAS V/23) and also its applying standards (Res A. 1045) in action to proceeding grievances concerning risky pilot transfer plans. The efficient day for the brand-new requirements was July 1, 2012. Several of the modifications dealt with making use of trapdoors in mix plans and also were planned to get rid of pilot ladders that hang from all-time low or near-bottom of the system, in addition to various other troubles with such plans.
To deal with the pilot ladder-platform change concern, Regulation 23 defines that a pilot ladder “shall be rigged through the trapdoor and extend to the height of the handrail” (V/23.3.3.2.1) and also, additionally, “means shall be provided to secure the lower platform of the accommodation ladder to the ship’s side, so as to ensure that the lower end of the accommodation ladder and the lower platform are held firmly against the ship’s side.” (V/23.3.3.2). Similarly, Resolution A. 1045 offers that when a trapdoor is made use of in a mix setup, “the pilot ladder should extend above the lower platform to the height of the handrail and remain in alignment with and against the ship’s side.” (A. 1045, paragraph 3.8).
“Against this background, it is frustrating, and now tragic, that pilots continue to encounter, and have to deal with, trapdoor arrangements like the one found on the ship from which Captain Sherwood fell,” states the organization.
The organization states that adhering to Regulation 23 and also Resolution A. 1045 is not a pricey recommendation. Replacing or retrofitting devices to satisfy the requirements would certainly not be a substantial task.
The letter prompts state pilotage authorities to take procedures that consist of:
Message to pilots
By whatever suggests you usually make use of to interact with your pilots and also pilot organization( s), advise them that a pilot might reject to make use of a transfer setup that she or he sensibly thinks is risky. In specific, you ought to keep in mind the troubles with a trapdoor setup comparable to the one where Captain Sherwood dropped, and also give a short summary of the present IMO requirements for mix plans making use of a trapdoor. You ought to likewise validate that you will certainly sustain, and also accept the reasoning of, a pilot that rejects to make use of a transfer setup that she or he thinks is risky, unless that rejection is later on revealed to be plainly unreasonable or insincere.
Message to the maritime neighborhood
By whatever suggests you take into consideration ideal, release a notification to pilot customers and also others in your regional naval neighborhood that you realize that some ships might supply a pilot transfer setup including a holiday accommodation ladder/pilot ladder mix with a trapdoor that does not satisfy IMO requirements effectively because at the very least 2012. Further, encourage that, in action, you have actually advised the pilots that they might reject to make use of a pilot transfer setup that they sensibly think is risky, especially the angering trapdoor setup. Urge ships with a trapdoor setup to bring their plans right into conformity with the present IMO requirements immediately to avoid prospective interruptions to deliver timetables and also port procedures. Ships can either (1) button to the much more standard system of a pilot ladder hung from the ship’s deck, located beside the holiday accommodation ladder system, and also safeguarded to the ship’s hull at a factor nominally 1.5 m over the system; or (2) make sure that the trapdoor setup fulfills the adhering to IMO requirements:
a) pilot ladder set up via the trapdoor expanding over the system to the elevation of the hand rails;
b) reduced system of holiday accommodation ladder safeguarded to the ship’s side, so regarding make sure that the reduced end of the holiday accommodation and also the reduced system are held strongly versus the ship’s side; and also
c) pilot ladder continues to be versus the ship’s side.
