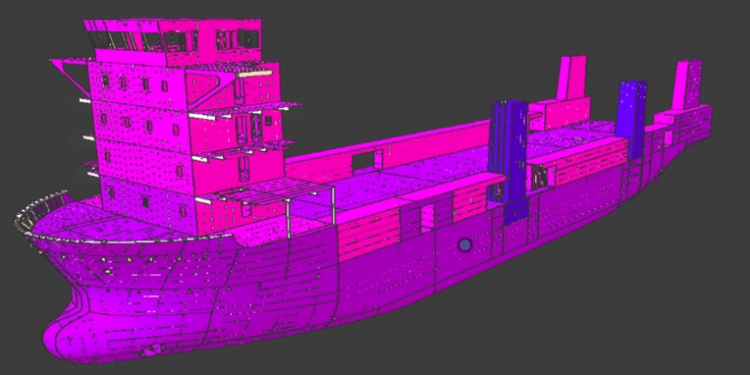

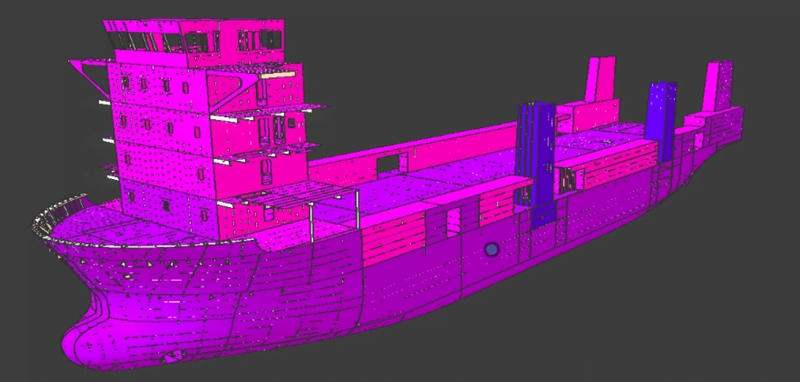

Bureau Veritas (BV), the Shanghai Merchant Ship Design & Research Institute (SDARI) and NAPA have accomplished the primary section of a Joint Development Project (JDP) to allow 3D model-based approvals for the classification of ships.
The venture validated the feasibility of 3D model-based approvals the place classification evaluations are straight primarily based on the 3D mannequin supplied by the designer, somewhat than requiring a number of conversions to 2D drawings, which is the standard course of. The goal is to spice up effectivity within the design course of, saving time and prices, whereas bettering accuracy and communication between all events concerned in a design, together with shipyards, naval architects and engineers, shipowners, and classification societies.
The JDP confirmed that the anticipated advantages of the strategy have been achieved, with the venture demonstrating an enchancment of design assessment high quality in addition to enhanced collaboration between all events.
The first section of the venture examined all the classification course of to make sure that all steps have been correctly carried out and enhance the varied software program as wanted. SDARI adopted NAPA Steel software program, whereas BV used NAPA Designer for the automated technology of the calculation fashions to carry out rule checks.
Using an open file format (OCX) generated by NAPA Designer, BV may use the 3D mannequin supplied by SDARI to carry out the design assessment utilizing its in-house rule checking software program: MARS and VeriSTAR Hull. BV’s construction evaluation feedback have been then related on to the 3D mannequin which facilitated a greater understanding and seamless communication between BV and SDARI.
