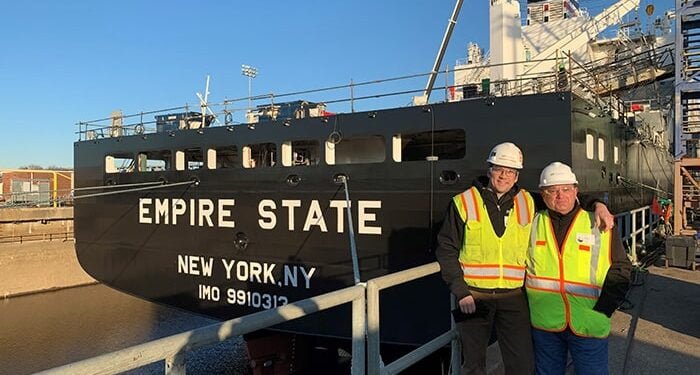

State-Class Training Ship Empire State, a National Security Multi-Mission Vessel Credit: Courtesy of RMF Engineering
By RMF Engineering‘s Andrew Hay, P.E., Division Manager, Infrastructure Engineering; Michael Wilkins, P.E., Project Manager; and also Kevin Kikola, P.E., Project Manager
The United States’ 5 State Maritime Academies–California, Maine, Massachusetts, State University of New York (SUNY), and also Texas A&M University at Galveston– are accountable for enlightening the future generation of police officers in the seller marine.
Graduates are important to nationwide safety and also maritime protection preparedness. To finest prepare pupils for that crucial duty, the united state Maritime Administration (MARAD) has actually been progressively functioning to deactivate and also change the academies’ existing fleet of training ships, which were initially developed for using vapor power and also have actually started to age past their feasibility.
The brand-new vessel program– referred to as National Security Multi-Mission Vessels (NSMVs)– will entirely update the academies’ training capacities, far better showing existing patterns and also procedures in the delivery market. The academies chosen by MARAD for training vessel substitute should go through considerable pier and also facilities overhauls to sustain the berthing problems developed for NSMV– a demand of the MOA with MARAD and also a problem of government assistance.
RMF Engineering has actually been operating in collaboration on promoting the change for a variety of these academies, bringing both a technological history in facility, college facilities jobs, and also experience in energy circulation to link the void with the maritime requires for these institutions.
Changes and also Challenges
The inbound vessels are various in dimension, building and construction, look, along with energy requires from the existing, maturing training ships. An effective nationwide possession, the NSMV was developed to give first-rate training for the united state’s future sailors and also to sustain altruistic aid and also catastrophe alleviation objectives in times of requirement– bringing on-board cutting edge medical facility centers, a helicopter touchdown pad, and also the capacity to berth approximately 1,000 individuals in times of altruistic requirement. Alongside its catastrophe alleviation abilities, the NSMV has a roll-on/roll-off ramp and also container storage space enabling it to give help to harmed ports. Consequently, when berthed at any type of provided academy, the NSMV will certainly have a coast power electric need in between 2000kVA to 4000kVA, relying on climate and also operating problems.
The existing energy systems on university, the regional energy expenses for power, and also the port’s distance to various other spots, systems, and also frameworks all contribute in RMF’s method to accomplish the power needs called for. The maritime atmospheres likewise give distinct difficulties to think about when developing durable energy systems, such as floodplain altitudes, groundwater degrees, and also the harsh nature of seawater. These intricacies are more worsened by the truth that college establishments bring their very own collection of factors to consider, proceeded scholastic guideline, university life and also occasions, university appearances, area stakeholders, and also maritime procedures leading to each academy needing a totally embellished method based upon its context.
SUNY, Massachusetts, and also Maine
At SUNY Maritime– the initial academy to get upgrades to prepare for the brand-new NSMV, the Empire State– RMF Engineering developed the academy’s brand-new shoreside facilities required to fit the ship’s distribution later on this year (2023 ). A detailed lots evaluation was carried out on the brand-new vessel’s coast power need for a selection of MARAD specified problems. This evaluation was evaluated with the regional energy and also the ship’s team for certain functional input. The result shown that the electric need (kWh) would certainly raise to 6 times the need of the existing vessel on an annual basis, increasing the existing university lots.
To sustain this rise, a brand-new 15kV solution feeder was called for from the energy business. Enhancing university resiliency, a brand-new 15kV solution entryway switchgear was likewise set up on a raised system, which would certainly secure it from tornado rise, along with possible energy feeder failings. New, repetitive 6.6 kV power feeders were dispersed throughout the university to offer the brand-new ship.
Capitalizing on the existing university vapor generation and also onboard steam-to-hot water warm exchanger, RMF likewise developed a substitute 50psi vapor line from the existing plant to the pier. This method permitted the university to stop the electric need of the vessel in cold weather, as the warm water given extra home heating precede.
As even more info appeared from MARAD while the facilities upgrades happened, nonetheless, it was identified that the existing pier framework would certainly not can sustaining the side tons of NSMV throughout hefty climate mooring. RMF partnered with McLaren Engineering Group to develop an upgrade to the academy’s pier framework and also energies to fit the brand-new vessel and also future university development. The pier upgrades consisted of brand-new mooring dolphins, brand-new concrete stacks, and also brand-new pier deck consisting of energy circulation trenches.
Massachusetts Maritime Academy will certainly get the 2nd NSMV, the Patriot State, set up for distribution in 2024. RMF partnered with GEI Consultants to develop the academy’s brand-new shoreside facilities, leveraging much of the lessons found out at SUNY. In specific, the lots evaluation was evaluated really early with the regional energy and also the university procedures employees for certain functional input. In comparison to SUNY, Massachusetts Maritime made the decision that the coast power link would certainly be developed to sustain the vessel throughout typical scholastic shore-side procedures.
This choice restricted the raised lots to 2,000 kVA, which still called for an extra committed solution feeder from the regional energy and also would certainly need the vessel to work on onboard power throughout any type of emergency situation occasion. A brand-new 25kV solution entryway feeder was dispersed throughout the university and after that changed to 6.6 kV to offer the brand-new vessel.
Like SUNY, Massachusetts Maritime looked for to use its existing vapor generation to counter the electric home heating of the Patriot State when at coast in the cold weather. RMF’s evaluation, nonetheless, discovered that the vapor system in position did not have the capability to fulfill the peak need of the ship’s warm exchanger. Evaluating the business economics of the regional electrical energy prices versus the vapor operating expense, together with the price of raising shore-side vapor generation capability, RMF identified that raising the shore-side vapor generation capability to the peak need of the vessel would certainly need extra plant impact.
It likewise would certainly not be as economical a financial investment, as peak problems hardly ever happen. A plant substitute was developed to raise the system capability as long as feasible, while making the most of the existing structure impact. This enables the shore-side vapor producing capability to give greater than double the typical need from the ship’s heater, in spite of being just approximately 50% of the peak need.
The 3rd NSMV will certainly be supplied to Maine, whose academy shares a port with its historical seaside community– needing mindful control and also intending to sustain the selection of vessels that berth there. An increased concrete pier, improved steel pilings, will certainly change the existing timber-construction, with brand-new energy links developed particularly to sustain the NSMV running below, consisting of brand-new below ground vapor lines, sewage system lines and also water lines. Like SUNY and also Massachusetts Maritime, a brand-new energy solution was called for to sustain the lots of the NSMV and also brand-new 6.6 kV facilities was dispersed to the pier.
Once once again, RMF finished a lots evaluation that was evaluated really early with the regional energy. Following an upgrade to the regional energy’s 35kV circulation line, a brand-new 12.5 kV solution entryway feeder is to be generated and also changed and also dispersed at 6.6 kV with a 3750kVA capability throughout the university to offer the brand-new vessel.
RMF likewise dealt with a layout group led by GZA to give updated facilities and also beachfront renovations. The existing vapor plant at Maine Maritime had no area for development, and also presently runs solely onNo 2 oil, raising the operating expense of the plant when contrasted to gas. Instead of raising the plant’s capability, various other structures presently offered by the plant are being fitted with regional central heating boilers to raise readily available vapor capability to the vessel.
Conclusion
Despite the uniformity throughout each NSMV, all 3 universities called for extremely customized methods to fix the distinct difficulties and also layout standards. RMF’s detailed and also nuanced methods for SUNY, Massachusetts Maritime, and also Maine Maritime not just furnish them to get the brand-new ships, yet will certainly best sustain the ongoing scholastic programs and also the areas bordering each university.
By 2025, the 4th ship is anticipated to be gotten by the Maritime Academy at Texas A&M University at Galveston, and also the 5th vessel will certainly most likely to the California State University Maritime Academy in Vallejo, Calif., which will certainly both include their very own distinct difficulties. The California website particularly rests at the base of a huge hill in an energetic seismic area with snugly regulated energy alternatives, developing a vibrant mix of factors to consider and also logistical difficulties.
