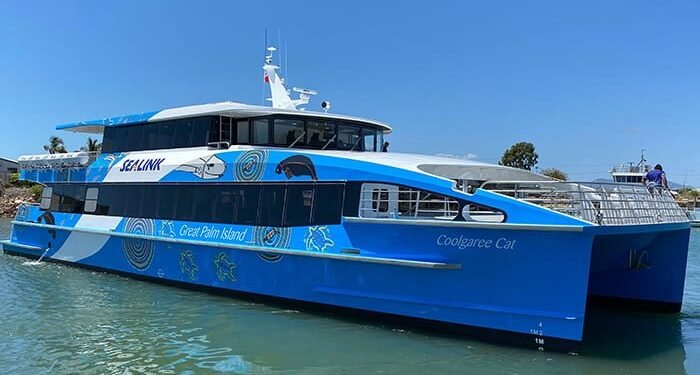

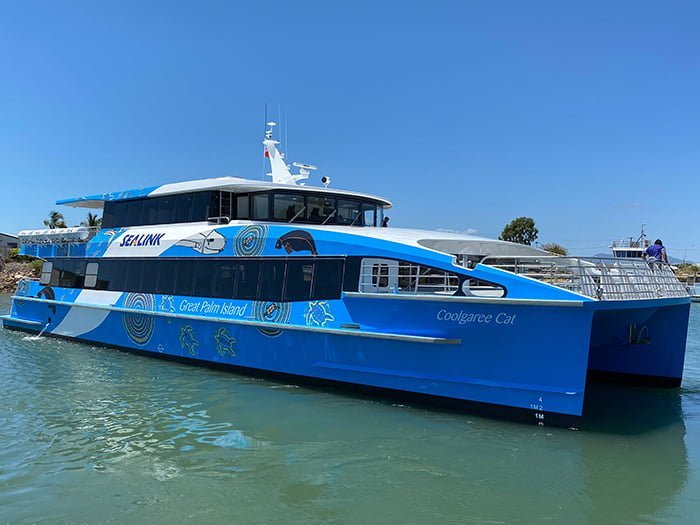

Coolgaree Cat [Photo: Incat Crowther]
Built by the Aluminium Marine shipyard in Brisbane, Queensland, Australia, Coolgaree Cat, is a functional 32-meter Incat Crowther catamaran ferryboat established particularly for driver Sealink Travel Group’s Palm Island as well as Magnetic Island ranges from Townsville in north Queensland.
The vessel is maximized for through-life performance on the overseas Palm Island course. According to Incat Crowther, lasting worth is boosted via a clear concentrate on functional functions consisting of freight handling, traveler vision, as well as upkeep. Operational prices are minimized with a reduced gas melt being seen throughout sea tests, regardless of Coolgaree Cat being a bigger, heavier-duty vessel than those it is changing.
Boarding is by means of strict side gateways or a port side midship boarding door. The primary deck functions 206 seats in a mix of cubicle as well as forward-facing, with deep home windows providing the cabin a light as well as ventilated feeling. There is a big booth aft, along with several storage space locations.
The top deck seats 86 guests in a mix of lounges as well as normal seats. 26 outside seats are readily available on the top aft deck. The mass of the aft deck is devoted to containerized products stowage, with room for 12 baggage carts as well as a great space for a more 3. The aft end coamings of this deck have actually been enhanced to manage the influence of the carts whilst filling gateways are particularly situated o deal with existing facilities.
The vessel is fitted with double Caterpillar C32 engines, supplying 970 kW each. Propulsion is by means of fixed-pitch props.
Capable of rates over of 30 knots, the vessel has a fuel-efficient completely filled functional rate of 26 knots at 60% MCR offering enhanced time in between primary engine overhauls.
Incat Crowther Technical Director Dr Andrew Tuite claimed, “In partnership with the operations team at SeaLink in Townsville, Incat Crowther developed a functional robust ferry for unique operating conditions experienced to Palm Island. Incat Crowther is proud of the technically advanced Coolgaree Cat, designed specifically for the Queensland environment and built in Queensland using world’s best shipbuilding processes.”
Chris Briggs, basic supervisor of Sealink North Queensland, claimed “Coolgaree Cat has achieved the performance envelope we were aiming for and has actually exceeded our performance expectations in some areas. This result has been achieved through Incat Crowther’s willingness to combine SeaLink’s operational knowledge and experience with their expertise and industry-leading approach to designing aluminium passenger ferries.”
Design No: IC17244
Vessel Name: Coolgaree Cat
Platform: Catamaran
Length Overall: 32.0 m
Length Waterline: 31.5 m
Beam: 10.0 m
Draft Hull: 1.2 m
Draft Max: 1.8 m
Depth: 3.0 m
Passengers:320
Crew:5
Fuel: 5,000 litres
Fresh Water: 2,000 litres
Sullage: 3,000 litres
Service Speed: 25 knots
Maximum Speed: 30
Main Engines: 2 x FELINE C32 B score
Installed Power: 2 x 970 kW @ 2,100 rpm
Propulsion: 2 x fixed-pitch props
Construction Material: Marine quality light weight aluminum
Flag: Australia
Class: NSCV 1C/1D
