On tests, the watercraft showed 1.2 tonnes of bollard pull in addition to crammed rates of 29 knots at complete power.

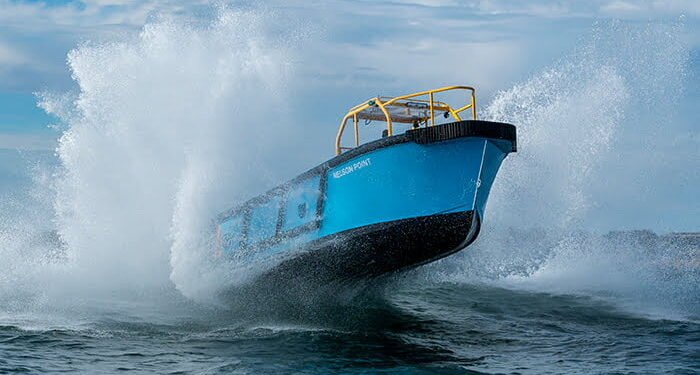

Now at the office in Port Hedland, Western Australia, the 9.8-meter light weight aluminum workboat Jetwave Nelson Point is the current enhancement to the fleet of around 30 specialized vessels run by Jetwave Marine to offer customers in the oil & & gas as well as source markets Australia- large.
The vessel is the 2nd custom-made workboat developed for Jetwave by Western Australia boatbuilder Dongara Marine.
Designed by Southerly Designs, the watercraft can carry out a selection of harbor solutions jobs consisting of line handling, crew/personnel transfer, as well as study procedures.
For the main lines watercraft job, Dongara Marine has actually fitted the vessel with a pulling crucifix ranked at approximately 2.5 tonnes. The 2 staff rest ahead of this in a protected safety cage with a mesh guard aft protecting versus prospective lines break back. The focus paid to lessening the possibility of lines obtaining captured is mirrored throughout the watercraft thoroughly such as bollards recessed within the barriers.
To assist in crew/personnel transfer procedures, fold-down seats for 6 travelers are incorporated right into the barriers. In enhancement to taking care of lines, the flush aft deck with open transom makes it possible for approximately 2.2 tonnes of deck freight to be brought.
WATERJET PROPULSION
As with the previous vessel the propulsion plan contains a solitary 272 kW Yanmar diesel, Twin Disc transmission, as well as an HJ322 HamiltonJet waterjet seleced for its mix of pulling power, cavitation resistance, as well as high-speed efficiency.
On tests, the watercraft showed 1.2 tonnes of bollard pull in addition to crammed rates of 29 knots at complete power as well as 26 knots at 85 percent MCR. Fuel usage is much less than 3 litres per maritime mile, as well as the watercraft has a 600 litre gas storage tank.
While broadband is uncommon for a lines watercraft, Jetwave Marine’s Operations Manager, Mick Warren, claims it is an included advantage that additionally has functional benefits.
“We don’t often use the speed, because mostly we are handling lines,” he claims. “For us, the advantages of using waterjet propulsion in that role are the enhanced maneuvering, directional thrust, and avoiding having an exposed propeller with consequent entanglement risks.” he stated.
“The speed is really a bonus, and it’s certainly good to have when we need to move between jobs quickly, and when transferring personnel,” he includes.
To assistance enhance equipment operating problems in Port Hedland’s usually severe temperature levels, Jetwave Nelson Point is fitted with a complete engine space air flow system offered byMarine Air Flow This consists of haze remover grilles, electrical outlet grilles, D.C. portable followers as well as air dampers.
Jetwave Marine got the vessel in October 2019, 5 months after taking shipment of its initial newbuild fromDongara Marine That watercraft, Jetwave Stanley Point, has actually been effectively functioning as a lines watercraft/ employees transfer vessel in Port Hedland because May 2019.
“With Jetwave Stanley Point we certainly wanted something a little bit different, and Dongara Marine delivered exactly what we asked for,” claimsWarren “It has proved to work really well in service, and we are really happy with it. In fact one of our skippers says it’s one of the best boats he has ever driven.
“Whenever you buy another boat you look for improvements, and I know that [Dongara Marine Managing Director] Rohan Warr takes the same approach as a boatbuilder,” Warren notes.
One modification in the current watercraft is to the fendering plan.
“We’ve got a bit less on the bow of this vessel, and we’ve added some on the sides, just to reduce wear and tear on the paintwork and aluminum structure,” Warren claims.
The brand-new lines watercraft additionally has even more standard bow as well as finer ahead areas than its precursor.
“For the first boat we requested the fuller bow shape, and Southerly Designs and Dongara Marine were happy to accommodate that. For this boat we have gone for the more typical Southerly bow shape, one that I am familiar with having grown up in the Mid West,” Warren
Rohan Warr keeps in mind that the a lot more standard bow produces a much more flexible system.
“As Jetwave Marine’s experience has shown, either bow shape will work well in the conditions typically experienced in Port Hedland’s inner harbor. The advantage of the finer bow entry is that it provides flexibility to work in harsher sea conditions, and we certainly demonstrated its ability in waves during trials off the coast,” claims Dongara’sRohan Warr “That may prove beneficial for Jetwave Marine in the future in terms of use in other ports or roles. It also makes it a great basis platform for a wide range of coastal work boat applications including aquaculture support, as a small passenger boat, for commercial or recreational fishing, in security roles, or even as a fun recreational craft.”
Specifications
- Name of vessel: Jetwave Nelson Point
- Type of vessel Lines/ job watercraft
- Survey Australian Maritime Safety Authority (AMSA)– National Standard for Commercial Vessels (NSCV) Class 2D
- Port Port Hedland, Western Australia
- Date of shipment May 2020
- Owner/ driver Jetwave Marine
- Designer Southerly Designs
- Builder Dongara Marine
- Construction products Aluminum hull as well as deck
- Length total 9.8 meters
- Beam 3.2 meters
- Draft 0.4 meters
- Main engines Yanmar 6LY2A-UTP. 272kW (370hp)
- Gearboxes Twin Disc
- Propulsion HamiltonJet HJ322 waterjet
- Maximum rate 29 knots (filled, 100% MCR)
- Cruising rate 26 knots (filled, 85% MCR)
- Fuel ability 600 litres
- Fuel usage 80 litres per hr at 27 knots
- Electronics provided by Geraldton Marine Electronics
- Plotter HDS Live 7
- Radios Icom VHF as well as Simrad VHF/AIS
- Paints/ finishesJotun Xtreme Gloss Painting by Dongara Marine
- Lighting Ultra Vision flooding lights
- Bollard draw 1.2 tonnes
- Deck freight 2.2 tonnes
- Crew 2
- Passengers 6
- Trailer Duralite Trailers, 8.5 tonnes
