Twin Volvo Penta 1,000 hp diesels matched to MJP waterjets provide the watercraft a packed rate of 44.5 knots

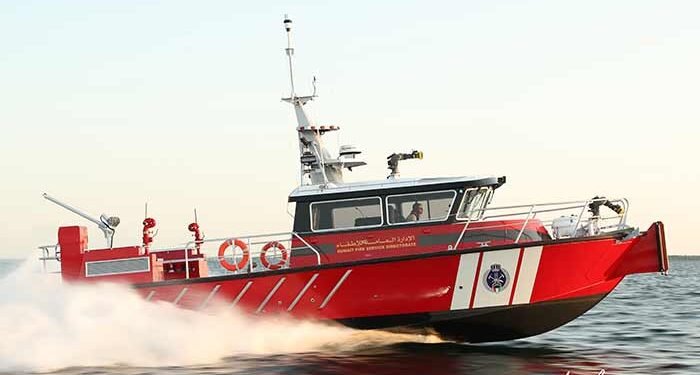

A Fire Tornado 50′ fireboat provided by Kingston, Ontario, headquartered MetalCraftMarine Inc (MCM) to the Kuwait Fire Service Directorate integrates the really most current in modern technology offered for fire combating and also search and also rescue.
Though this is the 4th Fire Tornado 50 ′ gotten by the KFSD considering that 2015, continual enhancement in systems style are crucial elements at MCM and also this watercraft integrates a variety of firsts. It is the initial Firestone to be powered by powered by double Volvo D13 1,000 HP diesels and also is driven by the initial Marine Jet Power 310X combined circulation waterjets mounted inNorth America The mix of lighter weight engines combined to lighter jets with greater drive, pressed the normally greatly packed fireboat to 44.5 knots.
MetalCraft chooses to make use of ZF Marine equipments. ZF sized the equipments to match the jet impeller dimension and also engine rate with no loss in performance at the high or reduced end of vessel efficiency.
Engine space air flow is given by Delta T Systems of Florida.
The watercraft’s electronic devices are Raymarine’s most current offerings, the Axiom PROSeries The watercraft has 3 16″ displays and also one 8″ display in the aft helm’s hinged room, all displays are constructed right into the gaming consoles. The displays can show all video camera systems consisting of maintained FLIR M Series evening vision video camera, in addition to give remote drone control and also World Wide Web accessibility. Additionally, they can be preloaded with SAR rescue patterns. The watercraft likewise has the current in Radio Direction Finding modern technology: The Rhotheta R,T-500 M can not just translate the radio hex code of a mayday telephone call yet likewise determine the place using Doppler modern technology.
The watercraft’s cooling and heating system utilizes twin 27K BTU Dometic Cruise Stowaway Turbo Air cooling and heating devices each efficient in cooling down the whole vessel cabin areas with a back-up engine-driven 36K BTU Arctic Wolf compressor, for usage when it comes to an air conditioning power supply breakdown.
The fire major system, a MetalCraft exclusive style, is completely certified with NFPA 1925 requirements. The fire pump has large sea breast intakes that are quickly cleaned up from inside the vessel. The large lengthy distance arm joints, and also large manifolds aid to accomplish pumping numbers well over-rated ability. The twin W.S. Darley ZSM 3000 pumps accomplished 7,500 gallons per min in sea test screening. A common fire engine pumper can pump 1,250-1,500 GPM. MetalCraft keeps in mind that W.S. Darley has not a problem offering solution in Kuwait or any kind of various other area on the planet and also provides a three-year service warranty on all its their pumps.
The Fire pumps supply roofing system and also bow installed EXM Scorpion 2500 GPM remote regulated screens byElkhart Brass The vessel is likewise furnished with double Bronze Copperhead 1250 GPM hand-operated screens on the aft deck. The generator is a Kohler 20 kW, to sustain numerous huge electrical dewatering pumps. Kohler, also, is well sustained in the Middle East.
