Issaquah is the primary WSF vessel with all-NXT solid-state industrial radars onboard
When the 1979-built Washington State Ferries (WSF) automotive/passenger ferry M/V Issaquah got here up for an electronics replace, WSF turned to long-time companion Furuno USA for the very newest in navigation electronics.

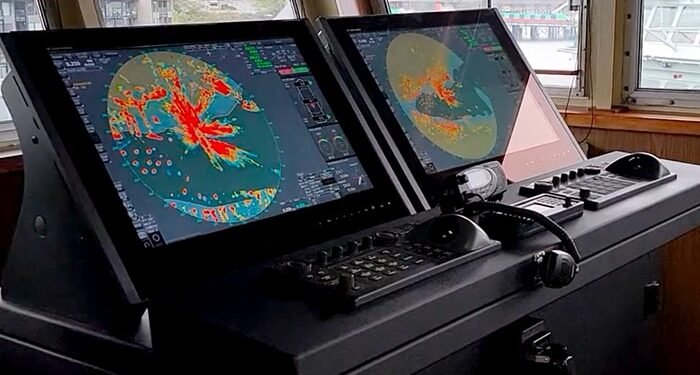

Built in 1979, Issaquah acquired a newly upgraded helm that includes 4 Furuno FAR3220NXTBB chart radars. These black field, solid-state chart radars present enhanced goal detection with a refined consumer interface and new, aerodynamic antennas, in addition to a bunch of latest and improved options. The consumer interface gives the operator with fastidiously organized instruments, the standing bar and Instant Access bar, that ship easy, task-based operation. Issaquah’s operators can rapidly carry out duties with out having to navigate an intricate menu tree, and entry to the entire needed capabilities is instantly out there. With two chart radars on every finish of the double-ended ferry and enhanced aspect conning for added situational consciousness, Issaquah is able to stick with it the WSF custom of secure navigation for years to return.
Issaquah is the primary WSF vessel with all-NXT solid-state industrial radars onboard, paired with the most important and brightest screens out there, the MU270W. These widescreen screens enable for 3-axis velocity to be displayed straight on the radar show, a characteristic that WSF pilots actually respect. The 3-axis velocity shows necessary data for 3 totally different factors of reference: longitudinal velocity (ahead-astern), transverse velocity (port-starboard) on the stern, and transverse velocity (port-starboard) from a user-determined reference level. this data is vital in advising operators of the ship’s motion throughout difficult circumstances, corresponding to berthing.
“Having easy-to-see rate-of-turn and 3-axis speed at the conning position is a game changer,” says WSF’s Captain Joel Michelson. “3-axis speed gives me accurate fore-aft speed, and also transverse speed and stern speed. On other vessels, I have speed over ground, but I could be drifting and not actually know if I’m making forward progress towards the landing. With 3-axis speed, I know exactly how the vessel is behaving, especially in heavy current and strong wind. I also like the larger displays, which are easy to see peripherally, but are also out of the path of view through the windows.”
Dual SC130 satellite tv for pc compasses present redundant heading and place, making certain correct heading from one finish to the opposite. Issaquah is the primary within the WSF fleet with fully redundant heading with computerized handover, making certain continued information distribution if both antenna had been to malfunction. If one compass had been to fail, the opposite will take over robotically. With twin SC130 Satellite Compasses, the Issaquah has no want for a gyrocompass or the pricey upkeep bills they require.
“One of the most important things I noted about Issaquah’s installation was the fully redundant heading inputs to the navigation suite,” mentioned Captain Michelson. “If a heading sensor antenna were to be lost at either end, the sensor from the opposite end seamlessly takes over, and all equipment continues to operate normally. In the past, loss of heading meant operating the Radars in heads-up only mode and doing without AIS or ARPA until the heading sensor was fixed. But on Issaquah, I’ll be momentarily alerted of the failure and still be able to navigate normally.”
Dual RD50 distant information shows at every finish make the most of the quick heading, rate-of-turn (RoT), and 3-axis velocity data. They are absolutely adjustable because of customized RAM mounts that hold them at an ideal viewing angle for the operator with out blocking the view outdoors the window.
