A worn-out bollard caused a Valaris drillship escaping as well as hitting a mass service provider in Pascagoula,Miss in 2014, the National Transportation Safety Board (NTSB) stated Thursday.
On March 12, 2022, the mobile overseas boring system Valaris DS-16 remained in the procedure of being reactivated at the ST Engineering Halter Marine as well as Offshore Shipyard (STEHMO) when it escaped from the dock in solid winds, wandered throughout the Bayou Casotte network as well as rammed the mass service providerAkti There were no injuries reported for the 164 crewmembers as well as employees aboard the drillship or the 22 crewmembers aboard the bulker, as well as there was no contamination reported. The overall damages arising from the breakaway was approximated at $5 million.
The drillship’s mooring lines had actually been positioned on 6 bollards on the pier at the STEHMOShipyard During solid winds of 30-40 knots, with gusts 45-50 knots, among the bollards damaged cost-free at its base as well as was managed the pier right into the water. The broke bollard protected the Valaris DS-16’s 4 bow lines as well as a semisubmersible gear’s 2 demanding lines.
Ultrasonic density examinations executed after the breakaway suggested there was worn away steel at the reduced section of a number of bollards. Several bollards likewise revealed indicators of outside deterioration as well as waste. In enhancement, every one of the bollards made use of by the Valaris DS-16 were customized from the initial 1997 style, as well as upright parts were contributed to each of the bollards to suit even more lines.

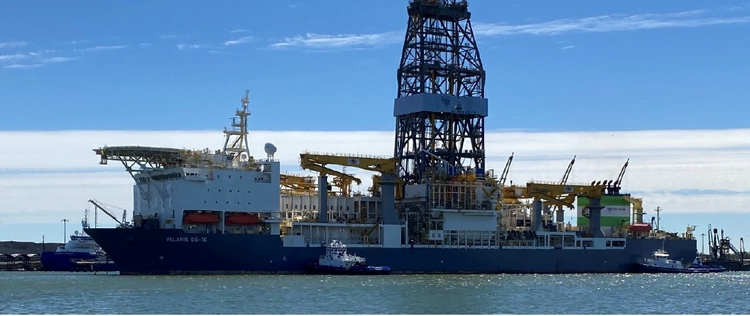

The drillship Valaris DS-16 anchored at STEHMO Shipyard prior to the casualty with lines protected to bollard 6 (prior to lines were readjusted for the March 12 solid winds). (Source: Valaris DS-16 captain, politeness NTSB)
As an outcome of the crash, the VALARIS DS-16 received damages to the riser managing system, deck installations, transfer hose-reel system, pathways as well as systems, as well as various other devices aboard. A barrier panel was flawed on the starboard side, as well as insets on the side covering plating as well as port demanding were likewise kept in mind. Divers located no damages to the undersea section of the hull throughout an undersea evaluation. Damages were approximated at $4.2 million.
The Akti continual damages to the starboard-side bridge wing, hand rails, deck coaming, side covering plating, as well as lights components. Damages were approximated at $778,000.
STEHMO approximated the price to change bollard 6 at their center at $20,000. The bollard was not recuperated from the network after it escaped. There were no reported problems to Chevron dock no. 6 where the Akti was anchored.
The shipyard has actually because changed 10 of the 14 bollards on the pier, with strategies to change an 11th bollard by the end of March 2023. Shipyard supervisors have actually started examining the secure workload of the brand-new bollards as well as are setting up a pull examination utilizing a tugboat.
“As a result of continuing increases in vessel size and sail area, bollards that were previously sufficient may not have adequate capacity to moor larger vessels,” the record stated. “There are currently no U.S. Coast Guard or Occupational Safety and Health Administration regulatory requirements for facilities to inspect and verify loading capacities of bollards at shoreside facilities. Bollards and associated pierside mooring equipment are vital equipment that must be capable of withstanding the tremendous forces that large vessels exert on them. Due to their exposure to seawater, bollards and associated pierside mooring equipment are at high risk for corrosion, which can significantly affect service life. The Coast Guard has recommended that facility owners and operators develop a routine inspection program for bollards and other mooring equipment.”
