[By Andrew Song]

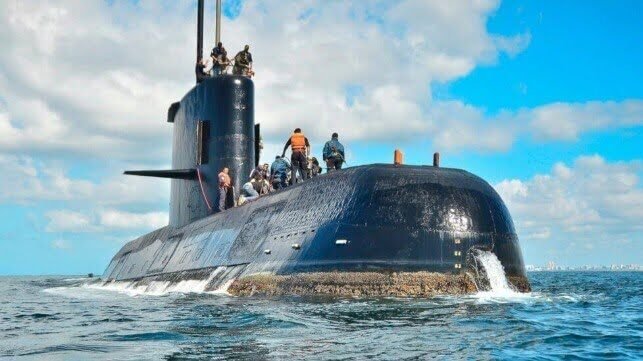

In the race in opposition to time, current historical past demonstrates that know-how stays restricted for submarine search and rescue efforts. The November 2017 disappearance of the Argentinian Navy submarine, the ARA San Juan (S-42), highlights the actual hardship confronting submarine restoration. After finishing a naval train close to Tierra del Fuego, the diesel-electric submarine ARA San Juan (S-42) departed from the town of Ushuaia to return to its residence port in Mar de Plata. The boat transmitted its final sign on November fifteenth, 2017 and its failure to report twice to its command the subsequent day prompted a global search and rescue operation beginning November seventeenth.1 This case examine examines the bounds of aquatic-based forensic strategies together with institutional shortcomings that inhibited the investigation. It moreover underlines how up to date submarine search instruments – for rescue, post-mishap investigation, or espionage – stay underdeveloped and require additional consideration.

Searching for the ARA San Juan (S-42)

On its one-year anniversary of the San Juan’s disappearance, Ocean Infinity – an American non-public seabed explorer firm contracted by Buenos Aires – situated the lacking submarine 270 nautical miles off Argentina’s nearest coastal metropolis at a depth of two,976 ft – roughly 3 times the nominal check depth.2 Photographs taken by Ocean Infinity’s ROVs portrayed a compromised hull with propellers and a bow part discernibly separated.3 Although presumed beforehand, the imagery eradicated any potentialities that there had been survivors on the ARA San Juan.

Revisiting the preliminary search operations on the seventeenth sheds gentle into the instant challenges of the submarine search and rescue operations. Argentinian Navy helicopters, U.S Navy P-8A Poseidon, and NASA P-3 Orion plane started search efforts with sonobuoys that possessed restricted vary, however which may very well be quickly and broadly deployed. It turned obvious that area and time deprived the emergency responders: The preliminary search field was bigger than the dimensions of Iraq.4 The ARA San Juan solely had a submerged oxygen provide of seven days, giving a five-day rescue window after the final communication. Moreover, the remoteness of the search space and the tardiness in assist diminished the chance of success. Over 11 international locations despatched 9 ships and 13 plane to the search space, however the extra manpower and vessels arrived by November twenty first (T-3 rescue window), requiring aerial-deployed sonobuoys to spearhead localization efforts – not side-scan sonars. 5 These sonobuoys supplied a medium to listen to misery transmissions from submarine, together with through energetic sonar, underwater phone, echo sounder, emergency location beacons, and hull tapping.

Other obstacles included unfavorable climate situations. In the rescue window, investigators battled swells that reached 10 meters and wind speeds within the South Atlantic recorded round 100km/h.6 Yet, essentially the most disappointing ingredient to the abrupt search operation was the abundance of false signatures. In the vital rescue window, a number of incidents hindered search progress by draining sources from follow-up investigations. Table 1 summarizes these sources of hope that have been later met with frustration.7

The Argentinian Navy declared the rescue facet of the search operation to be over on November thirtieth, 2017 after planners eradicated an excessive survival state of affairs. At its top, the search operation constituted over 4,000 personnel from over 13 international locations and surveyed over 200,000 sq. miles.8 On November sixteenth, 2018, a Houston-based hydrographic survey firm, Ocean Infinity, used a Norwegian multipurpose ship to analyze a potential ping on the San Juan’s potential place in the course of a sea canyon.9 Finally, Ocean Infinity confirmed discovery of the San Juan on November seventeenth, 2018 and handed over information and visible proof of the wreckage for forensic investigators to find out trigger. Ocean Infinity’s use of 5 autonomous undersea autos (AUVs) for exploring the wreck web site urged that intensive use of AUVs was integral to the mission’s success.

Argentine Navy photographs exhibiting the submarine’s bow part, sail, and propeller that have been torn off within the implosion. (Argentine Navy photograph)

Forensic Shortcomings and New Questions

In the case of the San Juan’s disappearance, investigators should ask themselves about failures within the search part and prescribe future procedures to keep away from such pitfalls. The disappearance of the ARA San Juan disturbingly mirrors the lack of the Kursk in 2003, other than the proof that the Kursk had preliminary survivors post-implosion. First, the Comprehensive Nuclear Test Ban Treaty Organization (CTBTO) in Vienna did detect a hydro-acoustic anomaly from its Ascension Island and Crozet Island stations that appeared in keeping with an underwater explosion on November fifteenth round 30 nautical miles from the San Juan’s final recognized bearing within the morning.10

Unfortunately, the CTBTO’s automated processing algorithm used to detect nuclear explosions didn’t flag the registration of the 2 hydrophone station’s recording.47 In an effort to attenuate false alarms, the CTBTO by the way failed to use information that would have been used in the direction of the calculation of a protection ellipse for the San Juan. CTBTO might have directed their waveform analysts to instantly deploy their normal iterative twin correspondence (IDC) automated localization algorithm to supply a spatial diagram of the detonation’s coordinates from iterative minimization of the origin time and azimuth residuals from the seismic information.

This had been accomplished earlier than as Koper particulars how 4 land-based seismometers detected the Kursk’s torpedo misfire on August tenth, 2000.11 Collation of the info within the Kursk case allowed for there to be a preliminary ellipse-shaped search parameter for the Kursk. The ARA San Juan’s implosion probably mimicked options of the Kursk’s explosion – compressive first movement, important variation and excessive ratio of Sn to Lg, and shear wave technology within the seismic file. The oversight within the hydroacoustic anomaly, though ultimately rectified by handbook processing, prompted the CTBTO to tell Argentina on November twenty second a couple of potential localization tardy within the search part.12 Earlier session between Argentina and CTBTO and higher automated processing for important non-nuclear seismic occasions might have produced a extra refined search field sooner.

State capabilities additionally hampered search execution. Ocean Infinity found the San Juan in a grid web site that had a 90 p.c chance of wreckage to be discovered – firstly of search planning.13 Argentinian officers defended themselves by stating that sub-canyons introduced a hazard that its Navy couldn’t outmaneuver. In different phrases, even when the crew was deemed to be alive, Argentina lacked strategies and know-how like a McCann Rescue Chamber or Deep Submergence Rescue Vehicle (DSRVs) required for a fragile retrieval operation. This deflection of blame, nonetheless, shared no advantage as U.S operators from Undersea Rescue Command in San Diego arrived with Submarine Rescue Diving and Recompression System and a tethered Pressurized Rescue Module Remotely Operated Vehicle (ROV) in solely two days.14

Comodoro Rivadavia, Argentina (Nov. 26, 2017) U.S. Navy Undersea Rescue Command (URC) sailors and Argentine building staff put together the motor vessel Sophie Siem for the set up of the Submarine Rescue Diving and Recompression System (SRDRS) which operates the deep diving rescue car, the Pressurized Rescue Module (PRM). (U.S. Navy photograph by Mass Communication Specialist Christopher Lange)

Lastly, the relegation and sidelining of side-scan sonar and UUVs contributed to inefficiency and lack of protection. Tardiness within the arrival of logistical assist signified that these strategies couldn’t be virtually carried out so whole blame couldn’t be place on the planners. Absence in data relating to eventualities and hypotheses didn’t permit for Bayesian search methods to be totally utilized, though submarine officers blame a short-circuit within the battery tray within the prow as a consequence of water consumption from the submarine’s snorkel as a precedent occasion to the suspected implosion.

That being stated, forensic investigators nonetheless confront distinct challenges irrelevant to conventional geophysical investigations. Unlike terrestrial-based forensics, pre-established data of a neighborhood maritime setting is sparse. Scientists have mapped 1/fifth of the ocean ground to trendy requirements with 100m decision, however meaning nearly 290 million sq. kilometers of seafloor – twice the floor space of Mars – has not but been surveyed. The absence of current charts, due to this fact, necessitates simultaneous 4-D mapping of the realm.15 Submarine particles are unidentifiable in satellite tv for pc and aerial pictures as a consequence of floor opacity and the intense depth of wrecks. Stratification conceals wrecks and clearing sedimentary buildup turns into extraordinarily sophisticated as a consequence of sheer quantity. An onsite “walk-over” survey, as described by Fenning and Donnelly of their description of geophysical methodologies, is just unattainable in a marine setting.16 Acidity and pH ranges of the water additionally affect charges of decomposition, and have to be thought of for a simulation within the casualty situation. In the long run, the undersea restoration discipline should overcome these variables to be able to discover any success in submarine search and rescue.

A screenshot exhibiting the wreckage of the ARA San Juan laying 920 meters under the floor. (Argentine Navy photograph)

The lack of the ARA San Juan devastated the Argentinian public and had dangerous repercussions on its naval service. Not solely did Argentina lose 44 sailors, however one of many San Juan’s crewmembers was the primary feminine submarine officer (Lieutenant Eliana Krawczyk) in Argentina’s historical past.17 Federal policemen raided the Navy’s headquarters for doc requisition to piece collectively culpability and allocate duty. Argentina’s Minister of Defense unceremoniously fired Marcelo Srur, the Navy’s Chief of the General Staff, and the occasions surrounding the ARA San Juan’s mission — monitoring British property close to the Falkland Islands — was publicly leaked by an Argentinian media supply, additional embarrassing the Navy.18

Conclusion

The job of discovering misplaced submarines is an enigma sophisticated even additional by the very purpose these boats exist: to be undetectable property for nationwide safety. Unlike their geologist friends, marine forensic investigators depend on robotics and invisible sound waves as surrogate sensors to palms and eyes. The growth of side-scan sonar programs, and the consolidation of UUVs for search operations and web site verification amalgamate the apply of maritime search right into a forensic discipline closely invested and intertwined with technological innovation. When establishing an inaugural search parameter, greatest practices in Bayesian search technique name for officers and scientists to weigh qualitative hypotheses to be able to allocate priorities to go looking containers that may provide most effectivity.

The ARA San Juan represents a current case, the place these strategies didn’t appear utilized to the fullest capability. Prior success within the historical past of those methodologies getting used for locating WWII vessels reveal that maybe governments should rethink fast response plans to misplaced submarines. In order to save lots of lives and honor the gravesites of people misplaced in occasions of battle, development of those strategies and a reevaluation of the ARA San Juan’s loss might be useful for the worldwide submarine group and for navies all over the world.

Ensign Andrew Song is a U.S. Navy submarine officer assigned to the USS San Francisco (MTS-711). His previous publications have appeared in peer-reviewed navy journals and shops together with Military Review, Journal of Indo-Pacific Affairs, USNI Proceedings, Yale Review for International Studies and the Wall Street Journal. He graduated from Yale University with a B.A. in Global Affairs.

This article seems courtesy of CIMSEC and could also be present in its unique kind here.

Endnotes

1. Politi, Daniel; Londoño, Ernesto (30 November 2017). “Hope for Argentina Submarine Crew Fades”. The New York Times. Nov 30, 2017.

2. “First photos of submarine emerge as families implore Argentine government to recover wreck”. NewsComAu. 18 November 2018.

3. “ARA San Juan.” Ocean Infinity, June 16, 2020. https://oceaninfinity.com/initiatives/ara-san-juan/.

4. Kirby, John. “Argentine Navy Says Sounds Detected Aren’t from Missing Sub.” CNN. Cable News Network, November 21, 2017. http://version.cnn.com/2017/11/20/americas/argentina-missing-submarine/index.html.

5. Ibid.

6. Pecoraro, Natalia. “El Fuerte Viento Demora El Operativo y Complica Las Tareas De Rescate.” La Nación, November 26, 2017. https://www.lanacion.com.ar/politica/el-fuerte-viento-demora-el-operativo-y-complica-las-tareas-de-rescate-nid2085829/.

7. “Avanza Un Operativo Donde Hace 8 Días Se Detectó Una ‘Anomalía Hidroacústica.’” Télam, November 23, 2017. https://www.telam.com.ar/notas/201711/225405-ara-san-juan-busqueda-armada-argentina-ruido-anomalia-hidroacustica.html (2) Goni, Uki. “Argentina’s Navy Says Fresh Noises Are Not from Missing Submarine.” The Guardian. Guardian News and Media, November 21, 2017. https://www.theguardian.com/world/2017/nov/20/missing-argentina-submarine-running-out-of-air-as-search-enters-critical-phase.

8. “San Juan Submarine: ‘Explosion’ Dashes Crew Survival Hopes.” BBC News. BBC, November 23, 2017. https://www.bbc.com/information/world-latin-america-42100620.

9. “ARA San Juan.” Ocean Infinity, June 16, 2020. https://oceaninfinity.com/initiatives/ara-san-juan/.

10. Nielsen, P.L., Zampolli, M., Le Bras, R. “CTBTO’s Data and Analysis Pertaining to the Search for the Missing Argentine Submarine ARA San Juan.” Pure Appl. Geophys. https://doi.org/10.1007/s00024-020-02445-9. January 31 2020.

11. Koper, Ok. D., et al., 2001. Forensic seismology and the sinking of the Kursk, Eos, 82, 45-46.

12. Politi, Daniel, and Mihir Zaveri. “Argentina Minister Says Country without Means to Rescue Submarine.” thestar.com, November 17, 2018. https://www.thestar.com/information/world/2018/11/17/missing-argentine-submarine-found-at-bottom-of-atlantic-one-year-after-disappearance.html.

13. Ibid.

14. “Argentina Missing Navy Submarine: Search Stepped Up.” BBC News. BBC, November 18, 2017. https://www.bbc.com/information/world-latin-america-42030560.

15. Amos, Jonathan. “One-Fifth of Earth’s Ocean Floor Is Now Mapped.” BBC News. BBC, June 20, 2020. https://www.bbc.com/information/science-environment-53119686.

16. Fenning, P. J., Donnelly, L. J., 2004. Geophysical strategies for forensic investigation. Geological Society of London Special Publications, 232, 11-20.

17. Argentina: Wreck of ARA San Juan Submarine Found after One Year . Al Jazeera English, 2018. https://www.youtube.com/watch?v=MxufaPwlTOA.

18. Gidget Fuentes, Special Correspondent. “Specialized Undersea Rescue Force on Call to Aid Submariners in Trouble.” Seapower, October 20, 2020. https://seapowermagazine.org/specialized-undersea-rescue-force-on-call-to-aid-submariners-in-trouble/.
