Florida- basedSt Johns Ship Building has actually begun building of a Jones Act- certified team transfer vessel which will certainly offer the Vineyard Wind 1 overseas wind ranch in the united state Atlantic.
The shipyard educated of the keel laying event for the Incat Crowther 30 style team transfer vessel on Thursday by means of social networks. An photo shared to come with the article reveals the event was hung on June 30.
“We could not be happier to have Hornblower and their partners return to St. Johns Ship Building to build the vessels that will help America move closer towards energy independence and a cleaner, healthier environment for generations to come,” the shipyard stated in a social media sites article.
The vessel will certainly be 30 meters long as well as will certainly have a huge foredeck with a 23 t.m knuckle boom crane as well as container safeguarding lugs.
The vessel will certainly be driven by quad Volvo IPS propulsion systems driven by Volvo DI13 primary engines as well as will certainly be hybrid-ready.
The CTV, which will certainly have the ability to lug 24 professionals as well as 6 team participants, is arranged to be provided in 2023 as well as will certainly go quickly right into solution for GERenewables The vessels will certainly initially run out of New Bedford, Mass., throughout the Vineyard Wind I building duration.
Located 15 miles off the coastline of Martha’s Vineyard, Vineyard Wind 1 will certainly be the very first commercial-scale overseas wind ranch in theUnited States With a producing capability of 800 megawatts (MW), the task will certainly give power to greater than 400,000 residences.

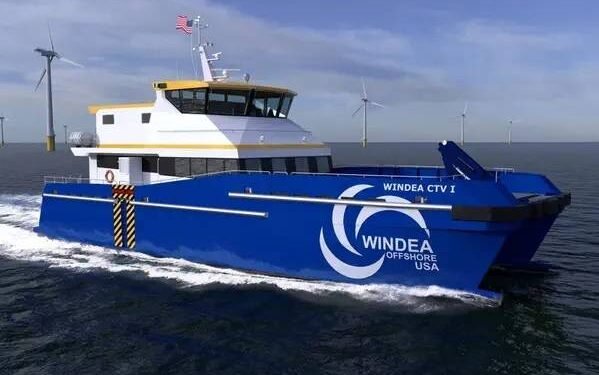

REQUIREMENTS – 30m CATAMARAN HYBRID-READY CTV
PRIMARY MEASUREMENTS
Length Overall 98′ 5″/ 30.0 m
Length Waterline 91′ 6″/ 27.9 m
Beam Overall 32′ 10″/ 10.0 m
Draft (hull) 4′ 7″/ 1.4 m
Draft (max) 5′ 6″/ 1.7 m
Depth 14′ 5″/ 4.4 m
Construction Marine quality aluminium
ABILITIES
Fuel Oil 9,510 gallons/ 36,000 litres
Fresh Water 925 gallons/ 3,500 litres
Sullage 660 gallons/ 2,500 litres
Technicians 24
Crew 6
PROPULSION AS WELL AS EFFICIENCY
Speed (Service) 26 knots
Speed (Max) 29 knots
Main Engines 4 x Volvo D13
Power 4 x 515 kW @ 2,250 rpm
Propulsion 4 x Volvo IPS 30
Generators 2 x 40kW
REGULATORY
Flag USCG CFR 46 Subchapter L
Class Bureau Veritas
