The GEF-UNDP-IMO Glofouling collaboration (2017) is a worldwide campaign to respond to the ecological problem of intrusive water varieties (IAS) as well as the resulting unsafe eco-friendly as well as economic damages that can take place when such intrusion occasions are presented by biofouling on ships hulls as well as various other aquatic frameworks such as those discovered in the oil as well as gas markets.
One of the essential purposes of the Glofouling job is to establish a Global Knowledge Hub as well as additionally determine locations where existing details might be doing not have yet pertains to the understanding of just how IAS is transferred using biofouling in ships at both neighborhood as well as worldwide degree.
One such understanding space is where encased damp anchors (See Figure 1) might supply a boosted place as well as vector system for IAS to transfer in between ships at berths within the center. The nature of such a transfer sensation is quickly explained in this post in addition to some possible reduction steps that vessels or ports might use to decrease the viewed danger.
Vessels showing up in ports from various other bioregions can present a considerable series of possibly intrusive water varieties using the tool of the gathered biofouling continued their hulls as well as various other undersea appendages (miller et alia, 2018).
To establish the degree of this threat postured by delivery particularly ports, there has actually been some job done to establish danger analysis methods which can be made use of to measure the biosecurity risk; such as that explained by the Australian Department of Agriculture, Fisheries as well as Forest (DAFF, 2011) which evaluations the elements identifying port vaccination occasions.
When taking into consideration the opportunity of biofouling varieties transfers within a port, the neighborhood hydrodynamic setting has actually been recognized as a variable which can amplify the strength of fouling both on substratums such as the harbour frameworks as well as additionally on the hulls of vessels checking out the port.The impact of port functions such as breakwaters, berthing plans as well as constrained entry networks all have a result on tidal flushing as well as the possible subsequent build-up of feasible propagules for biofouling transmission (Floerl as well as Inglis, 2003).
Wet Docks are port centers where the water is confined as well as maintained a specific degree to permit the loading as well as discharging of ships. A depictive damp dock plan is displayed in number 2. Such anchors are usually discovered upstream in rivers as well as permit ship freight procedures to happen near hinterland enterprise zones, despite tidal restraints. They supply protected problems where a ship can stay afloat in any way times. Ship accessibility to the dock is using a lock system fitted with securing entrances as well as pumps to control the lock water degree from the outside trend elevation to that of the functional deepness of the dock.
Figure 2. Typical Wet Dock plan. Source: H Eustice
Once berthed within such a dock, traditional transfers of hull biofouling microorganisms might take place via the down payment right into the dock water of separated organic product as an outcome of physical call with Tugs as well as berth fenders or the spontaneous launch of fed cells developing from various other stimulations such as temperature level as well as salinity modifications (Minchin as well as Gollasch, 2003).
Due to the nature of water room in a damp dock, it is recommended that this might stand for a substantial rise of biofouling danger in contrast to ports which are open to sea or river atmospheres. There seems an absence of research study worrying the biofouling transfer devices within such encased port locations.An location of specific note is the feasible impact of a ships cooling down water supply in these anchors as well as the subsequent possibility for berthed ships to a lot more swiftly trade various biofouling varieties within the boundaries of the dock itself.
While hull surface areas are a generally recognized transportation path for biofouling as well as IAS, there have actually additionally been researches accomplished to highlight the biofouling built up by ships in their inner sea water cooling down systems as well as the improved biosecurity danger that this might additionally stand for (Growcott et alia, 2016).
For ships, outside sea or dock water is utilized as an air conditioning resource for the primary as well as supporting engines using an inner warm exchanger system (Jones as well as Little 1990).

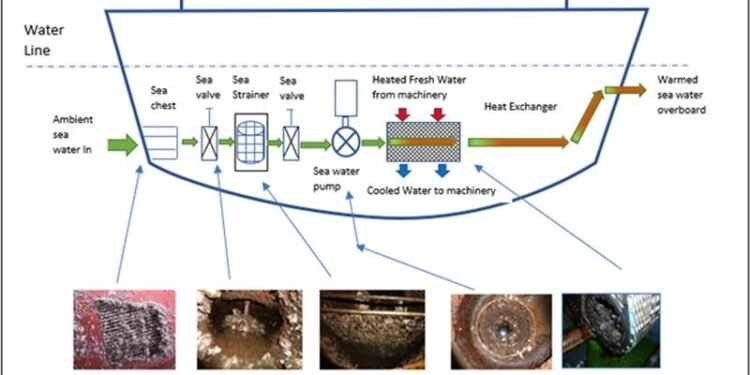

A streamlined schematic of a sea water cooling down system as well as its major elements is displayed in Figure 3.
For a ship berthed in a damp dock, inbound dock water at ambient temperature level goes into the cooling system using the sea upper body as well as filter. The sea water distributing pump produces a fast circulation of cooling down water to the warm exchanger. The warm exchanger has warmed fresh water showing up in a shut circuit from the numerous things of equipment aboard such as diesel motors, oil colders as well as refrigeration plant.Dock water is travelled through the exchanger in secured tubes or plates as well as enters into call with the bordering warmed fresh water circuit. The warm is moved to the pumped dock water as it travels through the exchanger. The cooled down fresh water is after that gone back to the equipment circulation plan whilst the warmed dock water is passed over the top back to the dock once again.
The cooling down systems are usually fitted with inner biofouling development avoidance steps yet, as can be seen from the images in Figure 3, they are not constantly reliable in eliminating all the biofouling build-up.
To understand the possible range of the cooling water biofouling problem pertaining to ships in damp anchors, the temporal quantities of cooling down water that ships can occupy as well as release in the dock requirement to be thought about:
With respect to bigger vessels approximately 200 metres in size (as stood for in Figure 2), whilst the primary engines would certainly not be running in the dock, there can still be a substantial air conditioning water need for additional generator power demands related to freight dealing with etc. For the objective of presentation as well as based on vessel kind, a price quote for a vessel of this dimension in port can include pumping via some 450 m3/hour of water from the dock right into the inner air conditioning system as well as back out right into the dock.
The complete kept water capability of the depictive dock in Figure 2, with an operating deepness of 15 meters, would certainly remain in the area of 5400,000 cubic metres of dock water. Thus, with 5 ships in the port trading an overall of around 54,000 cubic metres of dock water in every twenty-four hrs, around 10% of the complete water offered is being refined daily via the berthed ships cooling down water supply. This stands for a significant amount of distributed dock water, which has the possible to increase each day that the vessels stay in port.
This mass turning of common dock water, with each vessel vacuuming up 450 m3 of dock water every hr, passing it over all the perhaps fouled inner elements of the air conditioning system, heating it up and after that expeling it back right into the dock, as displayed in Figure 2, might stand for a significantly improved biosecurity danger. Once once again, detachment of product or spawning occasions within the air conditioning system will certainly boost the propagule stress within the damp dock water mass.
Further to this, considered that various varieties might have been brought right into the dock by vessels from differing geographical areas, the encased dock as well as the distributing vortexes of heated dock water developed by the berthed vessels cooling down water pumps present the possibility of each vessel a lot more swiftly sharing its organic tons with others as well as leaving the port having actually been properly seeded with extra varieties.
It is identified that using the entry lock center might cause some exchange of dock water with the nearby river tidewater or seaside area as would certainly sprinkle top quality guidance via using pumps to exchange water or enabling ‘free flow’ of river water via the locks for minimal durations when tidal restraints enable.
When taking into consideration the possible reduction steps to decrease this concealed danger of biofouling as well as therefore IAS transfer when ships are berthed in Wet Docks, the complying with can be thought about:
The biofouling of the inner elements of a ship air conditioning water supply has actually been commonly dealt with by the use biocidal representatives such as copper ions generated by electrically fed anodes in the sea upper body as displayed in Figure 4 or the straight shot of reduced focus of cleaning chemicals such as salt hypochlorite either provided to the ship wholesale drums or generated by electrolysis systems aboard.
Figure 4.Typical Copper Anode plan fitted to a ship’s sea upper body
A common anode system will certainly use Copper ions for biofouling control as well as Aluminium ions for deterioration control. Whilst these techniques can be effective if kept properly, they might have some unhealthy results by passing their reduced focus hazardous materials over the top right into the getting dock water, possibly influencing various other untargeted microorganisms around.
The unwanted chemical negative effects of these biocidal kind systems as well as their suspicious ecological standing has actually led to the growth of even more environmentally receptive options such as those using using equipped transducers, as displayed in Figure 5. These are made to transfer Ultra Sonic Frequencies, developing non-inertial cavitation which is made to damage the biofouling microorganisms within the air conditioning system in a local fashion without using possibly unsafe substances.
Figure 5.Ultrasonic Transducer plan fitted to a ship’s sea upper body
It merits to keep in mind that using this ultrasonic modern technology is not restricted to sea water cooling down systems as well as has actually been utilized to respond to aquatic biofouling in various other locations of a ship such as on propellors as well as tails
Given the big amount of cooling down water that is used up as well as released by the air conditioning pumps fitted to a ship, it is usually the situation that the cooling water pump capability might be evaluated a set price to suit all the computed warm exchange demands when the vessel goes to sea with her primary engines as well as all various other linked equipment running. When in a damp dock, it might serve to be able to manage the pump rate straight to decrease the throughput of cooling down water as opposed to making use of a by-pass system to change the water circulation to the warm exchanger. Investigative job by Theotokas (2017) revealed that using variable rate pumps (VSP) for the air conditioning systems can not just decrease the yearly power usage of a ship yet additionally boost system efficiency by closer control of essential temperature level specifications. Another benefit of making use of VSP in this situation would certainly be the decreased quantity of water being distributed in between ships in a damp dock as well as therefore a reduced danger of IAS spread within the dock.
Possibly one of the most reliable action to fight the activity of IAS within a damp dock as well as undoubtedly at any kind of port center would certainly be not to make use of the ships equipment to create electric power when at a berth yet rather make use of a coast electric supply. This modern technology is labelled ‘Cold Ironing’ as well as was initially presented numerous years back as an action to decrease Greenhouse Gas Emissions by ships in port. By efficiently eliminating the need for created power, the requirement for considerable amounts of cooling down water is additionally gotten rid of as well as the cooling water pumps might be quit entirely based on vessel style. This would considerably decrease the danger of IAS transfer from the cooling water supply. This modern technology is currently offered in numerous North America as well as European Ports as well as is expanding in operation.
It is kept in mind that damp anchors offering public berths for ships have a clear possibility to work as ‘hot spots’ for the transfer of biofouling varieties. An even more comprehensive understanding of the intricacy of damp dock organic devices, with a certain referral to the impact of ship procedures, can aid with even more reliable port ecological administration, decrease the danger of IAS transmission as well as aid with the conformity with various other governing needs such as water top quality regulations.
