Tugs names– Odin of Scapa and also Thor of Scapa– were chosenthrough an extensively sustained, Orkney Islands regional ballot workout

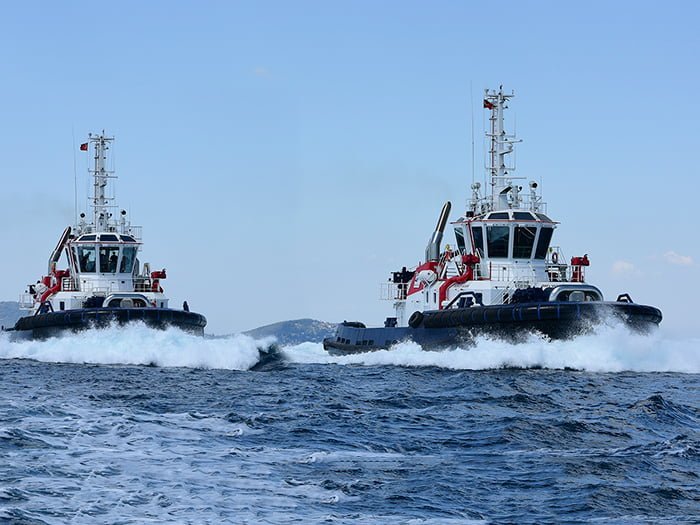

Last month saw the distribution of Odin of Scapa and also Thor of Scapa, a set ofRobert Allan Ltd created RAstar 3200-SX incurable support/escort yanks, that will certainly run in Scotland’s Orkney Islands.
The ships were developed by Turkey’s Sanmar Shipyards, which was picked by Orkney Island Council Marine Services after an extensive tender procedure. The names were picked with an extensively sustained, regional ballot workout released by the council in November of 2019.
The 2 yanks are changing 2 of the 3 yanks presently run by the proprietors.
The yanks are intentionally created with a shallower draft than various other equivalent high-performance companion yanks and also include substantial input and also partnership with Sanmar.
This consists of layout optimization to reduce building expenses without minimizing end efficiency, executing comments from the lot of business currently running Sanmar- developed Robert Allan layout yanks and also pre-engineering attributes, such as deck equipment, lodging format, and so on, to quickly permit simple personalization.
The RAstar 3200-SX escort/ship-assist pull is a twin Z-drive, diesel-powered vessel, created for the efficiency of ship-handling, towing and also companion responsibilities. IT is furnished for procedures over the bow and also demanding, with an effective companion winch at the bow for accompanying and also ship handling procedures, and also a pulling winch, pulling pins and also rounded transom at the demanding for pulling.
Key details of the Odin of Scapa and also Thor of Scapa are:
- Length, total: 32.0 meters
- Beam, shaped:13.0 meters
- Depth, the very least built: 5.35 meters
- Maximum draft (total): 5.50 meters
- Gross tonnage/ internet tonnage: 497/149
Tank Capacities at 98% are:
- Fuel oil: 162 cu.m
- Potable Water: 20 cu.m
- Main engine lube oil: 1.0 cu.m
- Foam: 9.8 m3
- Sewage holding storage tank: 9 cu.m
The vessels are created to RINA course needs with the adhering to symbols:
RINA C * Hull * Mach, Escort Tug, Fire Fighting Ship 1– Water -splashing, Unrestricted Navigation, AUT-UMS, Inwatersurvey
Propulsion and also supporting equipment contain:
- 2 x Caterpillar 3516C major diesels, each providing 2.350 bkW @ 1.800 RPM
- 2 x Rolls Royce version US255 controlled pitch Z-drives with 2.8 meter size props
- 3 x FELINE C 4.4 diesel gensets
Deck devices:
- Fore Winch: DMT companion winch
- Aft Winch: DMT towing winch
- Tow pin: Macgregor Triplex overview pins
Ship- dealing with fenders at the bow contain a top row of round fender and also a reduced program of W-fender. Sheer fendering includes “D” rubbers. “W” obstruct kind fendering at the demanding.
The lodgings have actually been furnished to a high criterion for a team of 6. The deckhouse has an entry lobby, the galley, mess, 2 policeman cabins with ensuite WC, and also a washing. The reduced deck has one plus one dual berth cabins with common WC and also 2 solitary policeman cabins with ensuite WC. The wheelhouse is created with a solitary split control terminal which gives optimum all rounded exposure and also outstanding exposure to the bow and also side fendering. The engine area includes an acoustically separated switchboard area.
On tests, the Odin of Scapa and also Thor of Scapa fulfilled or surpassed all efficiency assumptions, with the adhering to outcomes:
- Bollard Pull, in advance: 78 t
- Free running rate: 14.3 knots
