Pelagus 3D stated Wednesday it had delivered a Return Oil Standpipe at Kobe, Japan, to be put in on Wallenius Wilhelmsen’s RoRo vessel TYSLA. The collaboration concerned Kawasaki Heavy Industries and Wilhelmsen Ship Management.
Traditionally, the procurement, fabrication, and supply of particular spare elements has been a time-consuming course of, usually resulting in pricey downtime for the maritime and offshore industries. However, with the arrival of Additive Manufacturing (AM), often known as 3D Printing, the spare elements provide chain panorama is evolving quickly, Pelagus 3D stated.
According to Pelagus 3D, AM spare elements can now remedy points together with lengthy lead time for fabrication or supply of the half, poor efficiency by the historically manufactured half, and the shortage of spare elements as a result of obsolescence.
The return oil standpipe was fabricated in Stainless Steel utilizing an AM know-how referred to as Selective Laser Sintering (SLS). The SLS course of utilises lasers to sinter, or fuse, powdered supplies right into a stable construction.
Through AM, the burden of the spare half was decreased by 90%, from 75kg utilizing conventional manufacturing to roughly 8kg utilizing AM. With a light-weight development, it eliminates the necessity for a crane throughout set up, whereas additionally guaranteeing uninterrupted operations throughout upkeep, Pelagus 3D stated.
The lead time for fabrication utilizing AM was decreased to fifteen days as in comparison with 135 days utilizing conventional manufacturing. This lead time discount meets the on-demand want for spare elements, shortening any vessel downtime, the corporate stated.
Collab with Kawasaki Heavy Industries
Pelagus 3D partnered with Kawasaki Heavy Industries, an Original Equipment Manufacturer (OEM) of business equipment, to manufacture the historically manufactured half into an AM spare half.
The return oil standpipe is much like a tank that incorporates and retains Lubricating Oil (LO) utilized in electronically managed diesel engines. It helps to maintain the oil stage contained in the system to make sure that the gas oil is injected on the correct time when the injection is ordered by the engine management system.
This essential spare half, when broken, may cause lubricating oil within the standpipe to leak out, triggering the leak detection alarms within the Hydraulic Cylinder Unit (HCU) drain line. Furthermore, when the LO is just not equipped to the Fuel Oil (FO) injection management valve, the FO injection is probably not correctly carried out as a result of air contamination and the FO plunger stroke low alarm might be triggered. This may cause the principle engine to decelerate, affecting operations onboard the vessel.

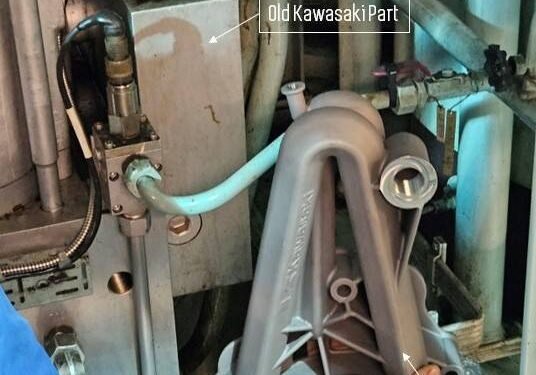

Through Kawasaki Heavy Industries’ collaborative efforts, Pelagus 3D was in a position to decide the optimum part form for the additively manufactured return oil standpipe. The new design combines 10 historically manufactured elements into 1 additively manufactured half.
To improve the half efficiency, the return oil standpipe was redesigned to enhance move effectivity by guaranteeing smoother channels, with no sharp edges. This discount in weight and materials used within the return oil standpipe manufacturing ensures a extra sustainable fabrication follow.
“We are very satisfied with this great result in this program. Workability and safety during installation and replacement will be improving dramatically due to a 90% weight reduction by AM technology. This AM technology is one of the best suitable technologies for Sustainable Development Goals (SDG) because it can reduce the amount of material used. We expect to expand its application to various parts in the future.” says Yoshinori Daido, Lead Engineer of AM challenge for Marine Machinery, Kawasaki Heavy Industries.
Future of Spare Parts
The collaborative nature of the companions ensured the fast manufacturing of the essential part and the on-time supply to vessel TYSLA. This reinforces Pelagus 3D’s paradigm for the way forward for spare elements provide chain administration, Pelagus 3D stated.
As the maritime and offshore trade continues to embrace the chances provided by AM, this collaboration between Kawasaki Heavy Industries and Wilhelmsen Ship Management reinforces the progressive developments of the spare elements provide chain, Pelagus 3D added.
“We are honoured to participate in this trial, exemplifying our dedication to revolutionising ship operations. The shortened lead time for spare parts will greatly enhance our response times, particularly for those challenging-to-source or phased-out components” says John Beck, Vice President Procurement, Wilhelmsen Ship Management.
With Pelagus 3D, finish customers and OEMs can entry digital designs of spare elements which might be saved securely, permitting for on-demand manufacturing each time the necessity for spare elements arises. This digital stock eliminates the constraints of bodily storage and transportation, considerably lowering lead occasions and prices, Pelagus 3D stated.
