MIT’s fleet of.
robot watercrafts has actually been upgraded with brand-new abilities to “shapeshift,” by.
autonomously separating and also rebuilding right into a selection of arrangements,.
to develop drifting frameworks in Amsterdam’s numerous canals.
The independent watercrafts– rectangle-shaped hulls outfitted with sensing units, thrusters, microcontrollers, GPS components, electronic cameras, and also various other equipment– are being established as component of the continuous “Roboat” task in between MIT and also the Amsterdam Institute for Advanced Metropolitan Solutions (AMS Institute). The task is led by MIT teachers Carlo Ratti, Daniela Rus, Dennis Frenchman, and also Andrew Whittle In the future, Amsterdam desires the roboats to travel its 165 winding canals, transferring items and also individuals, accumulating garbage, or self-assembling right into “pop-up” systems– such as bridges and also phases– to aid ease blockage on the city’s hectic roads.
In 2016, MIT scientists checked a roboat model that can move on, backwards, and also side to side along a preprogrammed course in the canals. Last year, scientists made inexpensive, 3-D-printed, one-quarter range variations of the watercrafts, which were much more effective and also dexterous, and also came outfitted with sophisticated trajectory-tracking formulas. In June, they developed an independent locking device that allowed the watercrafts target and also hold onto each various other, and also maintain attempting if they stop working.
In a brand-new paper.
offered at the recently’s IEEE International Symposium on Multi-Robot and also.
Multi-Agent Systems, the scientists explain a formula that makes it possible for the.
roboats to efficiently improve themselves as effectively as feasible.The
formula takes care of all the preparation and also monitoring that makes it possible for teams of roboat.
systems to unlock from each other in one collection arrangement, traveling a.
collision-free course, and also reattach to their suitable place on the brand-new collection.
arrangement.
In

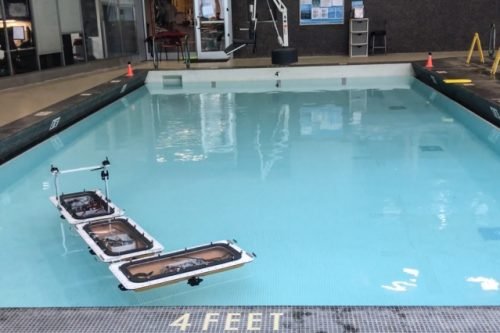

presentations in an MIT swimming pool and also in computer system simulations, teams of connected.
roboat systems reorganized themselves from straight lines or squares right into various other.
arrangements, such as rectangular shapes and also “L” forms. The speculative.
improvements just took a couple of mins. More complicated shapeshifts might take.
much longer, relying on the variety of relocating systems– which can be lots.
— and also distinctions in between both forms.
“We’ve enabled the roboats to now make and break connections with other roboats, with hopes of moving activities on the streets of Amsterdam to the water,” claims Rus, supervisor of the Computer Science and also Artificial Intelligence Laboratory (CSAIL) and also the Andrew and also Erna Viterbi Professor of Electrical Engineering and alsoComputer Science “A set of boats can come together to form linear shapes as pop-up bridges, if we need to send materials or people from one side of a canal to the other. Or, we can create pop-up wider platforms for flower or food markets.”
Joining Rus on.
the paper are: Ratti, supervisor of MIT’s Senseable City Lab, and also, likewise from the.
laboratory, very first writer Banti Gheneti, Ryan Kelly, and also Drew Meyers, all scientists;.
postdoc Shinkyu Park; and also study other Pietro Leoni.
Collision- totally free.
trajectories
For their.
job, the scientists needed to deal with obstacles with independent preparation,.
monitoring, and also linking teams of roboat systems. Giving each system one-of-a-kind abilities.
to, for example, situate each various other, settle on just how to disintegrate and also reform,.
and afterwards walk around easily, would certainly call for complicated interaction and also control.
methods that can make activity ineffective and also slow-moving.
To allow smoother procedures, the scientists established 2 sorts of systems: organizers and also employees. One or even more employees attach to one planner to develop a solitary entity, called a “connected-vessel platform” (CVP). All planner and also employee systems have 4 props, a wireless-enabled microcontroller, and also numerous computerized locking devices and also noticing systems that allow them to connect with each other.
Coordinators,.
nevertheless, likewise come outfitted with GENERAL PRACTITIONER for navigating, and also an inertial.
dimension system (IMU), which calculates localization, present, and also rate.
Workers just have actuators that aid the CVP guide along a course.Each
planner recognizes and also can wirelessly interact with all attached.
employees. Structures consist of several CVPs, and also specific CVPs can acquire.
each other to develop a bigger entity.
During
shapeshifting, all linked CVPs in a framework contrast the geometric.
distinctions in between its first form and also brand-new form. Then, each CVP identifies.
if it remains in the very same place and also if it requires to relocate. Each relocating CVP is after that.
appointed a time to take apart and also a brand-new placement in the brand-new form.
Each CVP makes use of.
a custom-made trajectory-planning strategy to calculate a means to reach its target.
placement without disturbance, while enhancing the course for rate. To do so,.
each CVP precomputes all collision-free areas around the relocating CVP as it.
rotates and also relocations far from a fixed one.
After
precomputing those collision-free areas, the CVP after that discovers the quickest.
trajectory to its last location, which still maintains it from striking the.
fixed system. Notably, optimization methods are utilized to make the entire.
trajectory-planning procedure extremely effective, with the precomputation taking.
little bit greater than 100 nanoseconds to discover and also fine-tune risk-free courses. Using information.
from the GPS and also IMU, the planner after that approximates its present and also rate at.
its center of gravity, and also wirelessly manages all the props of each system and also.
relocations right into the target place.
In their.
experiments, the scientists checked three-unit CVPs, including one planner.
and also 2 employees, in numerous various shapeshifting circumstances. Each situation.
entailed one CVP unlocking from the first form and also relocating and also relatching to.
a target place around a 2nd CVP.
Three CVPs,.
for example, reorganized themselves from a linked straight line– where they.
were locked with each other at their sides– right into a straight line attached at.
front and also back, along with an “L.” In computer system simulations, approximately 12 roboat.
systems reorganized themselves from, state, a rectangular shape right into a square or from a.
strong square right into a Z-like form.
Scaling
up
Experiments
were carried out on quarter-sized roboat systems, which determine regarding 1 meter long.
and also half a meter broad. But the scientists think their trajectory-planning.
formula will certainly scale well in regulating full-sized systems, which will certainly determine.
regarding 4 meters long and also 2 meters broad.
In regarding a year, the scientists prepare to make use of the roboats to develop right into a vibrant “bridge” throughout a 60-meter canal in between the NEMO Science Museum in Amsterdam’s town hall and also a location that’s under advancement. The task, called RoundAround, will certainly use roboats to cruise in a constant circle throughout the canal, getting and also handing over guests at anchors and also quiting or rerouting when they spot anything in the method. Currently, walking that river takes around 10 mins, yet the bridge can reduce that time to around 2 mins.
“This will be the world’s first bridge comprised of a fleet of autonomous boats,” Ratti claims. “A regular bridge would be super expensive, because you have boats going through, so you’d need to have a mechanical bridge that opens up or a very high bridge. But we can connect two sides of canal [by using] autonomous boats that become dynamic, responsive architecture that float on the water.”
To get to that.
objective, the scientists are additional establishing the roboats to guarantee they can.
securely hold individuals, and also are durable to all weather, such as hefty.
rainfall. They’re likewise ensuring the roboats can properly attach sideways.
of the canals, which can differ significantly in framework and also layout.
