SeaRobotics ASV makes use of a Torqeedo electrical propulsion system to fulfill its demands for reputable efficiency, expanded time on terminal as well as silent procedure

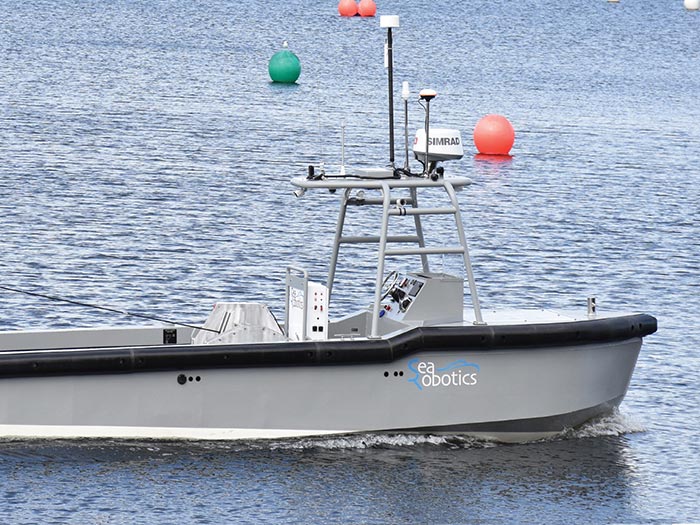

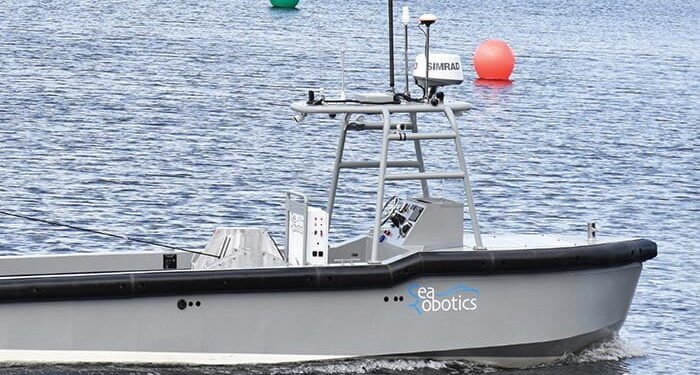

SeaRobotics Corporation’s SR-Endurance 7.0 self-governing surface area automobile (ASV) makes use of a Torqeedo electrical propulsion system to fulfill its demands for reputable efficiency, expanded time on terminal as well as silent procedure– all vital requirements when carrying out acoustic undersea studies.
“Our power requirements for this Endurance 7.0 ASV were very specific,” stated Don Darling, head of state of Stuart, Fla., baseds SeaRobotics. “The vessel required extended endurance on station as well as a quiet operating mode while performing acoustic research operations.”
The powertrain for the 7 meter light weight aluminum watercraft contains a Torqeedo Deep Blue 50i electrical motor, a 360 VDC 30.5 kW lithium propulsion battery, a water-cooled DC-DC converter, a 24 VDC lithium battery for DC-DC back-up, as well as a 25 kW diesel generator.
The totally incorporated computer-controlled propulsion system is made for long-range unmanned hydrography as well as subsea mapping objectives.
The system is made to supply as much as 6 days on terminal at study rates as well as as much as 10 hrs in between automated battery reenergizes from the onboard generator. The reenergizing cycles are totally automated under computer system control.
“The DeepBlue electric drive, with 80 horsepower-equivalent output, provides ample power for a wide range of towed or statically deployed systems,” Darling stated. “In addition, the smooth, continuous and rapid transition from forward to reverse thrust assists in station-keeping as well as near-dock maneuvering.”
The Endurance 7.0 can run under remote by a driver onto land or semi-autonomously to carry out an objective strategy. All on-board systems are checked with information links to the remote base terminal. The driver can manage all user interfaces, sight video clip feeds or place the ASV right into automated waypoint navigating setting, in which throttle as well as guiding are under complete computer system control. The watercraft’s helm terminal can be additionally manned for procedure in stuffed rivers as well as ramp procedures when needed.
“Autonomous surface vessels are a perfect application for electric propulsion in terms of silent, emission-free performance and reliable, low-maintenance operation,” stated Steve Trkla, head of state of Torqeedo,Inc “Torqeedo also had extensive previous experience in working with ASV builders. The full range of Torqeedo drives, from 0.5 kW outboards up to the high-voltage 50 kW Deep Blue system, have been successfully integrated into ASVs by builders around the world.”
“Importantly, Torqeedo gave us the level of engineering and system integration support needed to create a fully meshed propulsion and control solution to meet our requirements for autonomous survey operations,” stated Darling, that kept in mind that SeaRobotics is additionally utilizing Torqeedo outboards on various other ASVs.
