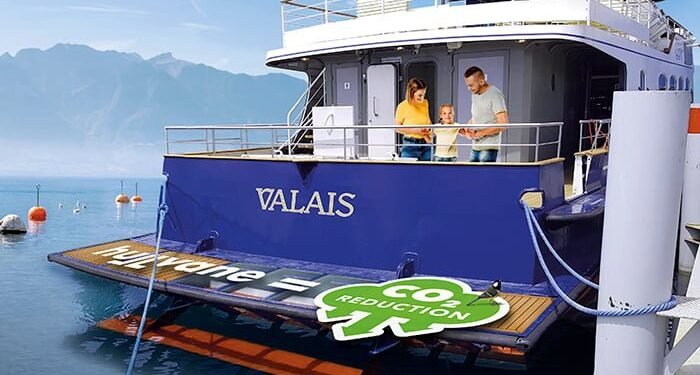

Energy conserving retrofit consisted of installment of a Hull Vane
Energy- conserving retrofits are prevalent on big freight vessels as well as cruise liner. But can they likewise make a substantial distinction on a little guest vessel? Lausanne, Switzerland, headquartered CGN, which runs a fleet of 19 guest vessels on Lake Geneva, determined to figure out. As an examination instance, the firm chose the 30 meter, 200-passenger guest vessel Valais, which was integrated in 2008, as well as that makes approximately 40 crossings a day in between Yvoire (France) as well as Nyon (Switzerland
“We selected the 30 meter passenger ship Valais and commissioned a ship optimization study by means of Computational Fluid Dynamics software, comparing several possible hydrodynamic improvements at our operating speed of 25 km/h” states Irwin Gafner, technological supervisor at CGN. “In the study, the benchmark hull (which has a trim wedge) was compared to various retrofit alternatives for the stern, such as ducktail extensions, interceptors (a vertical blade protruding below the transom) and a Hull Vane, which is a rather novel solution and can be described as a ‘spoiler for ships.’ The best alternative to come out of this optimization was the Hull Vane, promising a resistance reduction of 15%. We also asked to optimize a bulbous bow for the ship with Hull Vane.”
After the hydrodynamic research, CGN Technique got the Hull Vane from Wageningen, Netherlands, based Hull Vane B.V. as well as the round bow from a neighborhood subcontractor. Lake tests were carried out prior to drydocking, in which precise dimensions were made from the ship’s gas intake. During the set up completely dry dock duration, at the CGN Technique centers in Lausanne, both tools were mounted, as well as the primary engines were changed with brand-new common-rail V8 MALE engines. After establishing of the vessel, ballast was included the acquiesce bring the vessel to the proper draft.
OUTCOMES
In spite of the considerable quantity of included weight, consisting of Hull Vane, round bow building and construction as well as ballast, the outcomes revealed that the gas intake of the vessel was lowered by 24%. Noise dimensions aboard likewise revealed that the enhanced performance, reduced rpm’s as well as brand-new engines made the vessel more quiet: the sound degree was lowered by 2 dB( A) in the wheelhouse as well as by 6 dB( A) in the guest lounge. The vessel currently likewise makes dramatically much less waves, a truth which is valued by the leisure individuals ofLake Geneva The included weight as well as included immersed surface areas likewise boost the security as well as seakeeping of the vessel.
TRIAL WATERCRAFT
“There are a lot of small passenger ships ranging from 20 meters to 100 meters in use worldwide, on rivers, lakes and servicing islands,” states Bruno Bouckaert, sales supervisor at Hull Vane BV. “Because of their length and displacement, they often operate at excellent speeds for Hull Vane effectiveness, making a retrofit very worthwhile. We are very happy that CGN took this pioneering step. Having a Hull Vane on a passenger ship also makes it a lot easier for us to show clients how simple and effective the device really is. MS Valais is the ideal demo boat, as we can simply buy a ticket and make a crossing on board.”
“We are extremely pleased with the results of this retrofit. Improving the hydrodynamics of a vessel makes perfect sense, regardless of which fuel we will be using in the future,” statesGafner “Using less fuel makes a future energy transition easier and more affordable, and in the meantime, we have the benefit of lower fuel costs, less CO2 emissions, less noise and less waves. Coming from an automotive background, I am amazed at the savings percentages which are still possible on passenger ships. There is a huge untapped potential for CO2 reduction on ships, it is very low-hanging fruit. We have calculated that this retrofit on MS Valais will reduce CO2 emissions by 129 tons per year, and of course also 24% of diesel particles and NOx emissions. Last but not least, the return on investment is excellent.”
